Calculus &
Linear Algebra II

Chapter 30

30 Introduction to triple integrals

By the end of this section, you should be able to answer the following questions:

  • How do you evaluate a triple integral?
  • How do you use a triple integral to find the mass of a solid object with known density?
  • How do you change the order of integration in a triple integral?


30 Introduction to triple integrals

We can extend the definition of a double integral to a triple integral \[ \iiint_R f(x,y,z)~dV \] where $R$ is a region in $\R^3$ and $dV$ is an element of volume.




30 Introduction to triple integrals

If $R$ is a region in $\R^3$ specified by

$r(x,y)\leq z \leq s(x,y)$
$p(x)\leq y \leq q(x)$
$a\leq x \leq b$

then

$\ds \iiint_\limits{R} f(x,y,z)~dV = \int_a^b \left\{ \int_{p(x)}^{q(x)} \left[ \int_{r(x,y)}^{s(x,y)} f(x,y,z)dz \right]dy \right\}dx. $

In two dimensions, there are 2 possible orders of integration. In three dimensions, there are 6.


30 Introduction to triple integrals

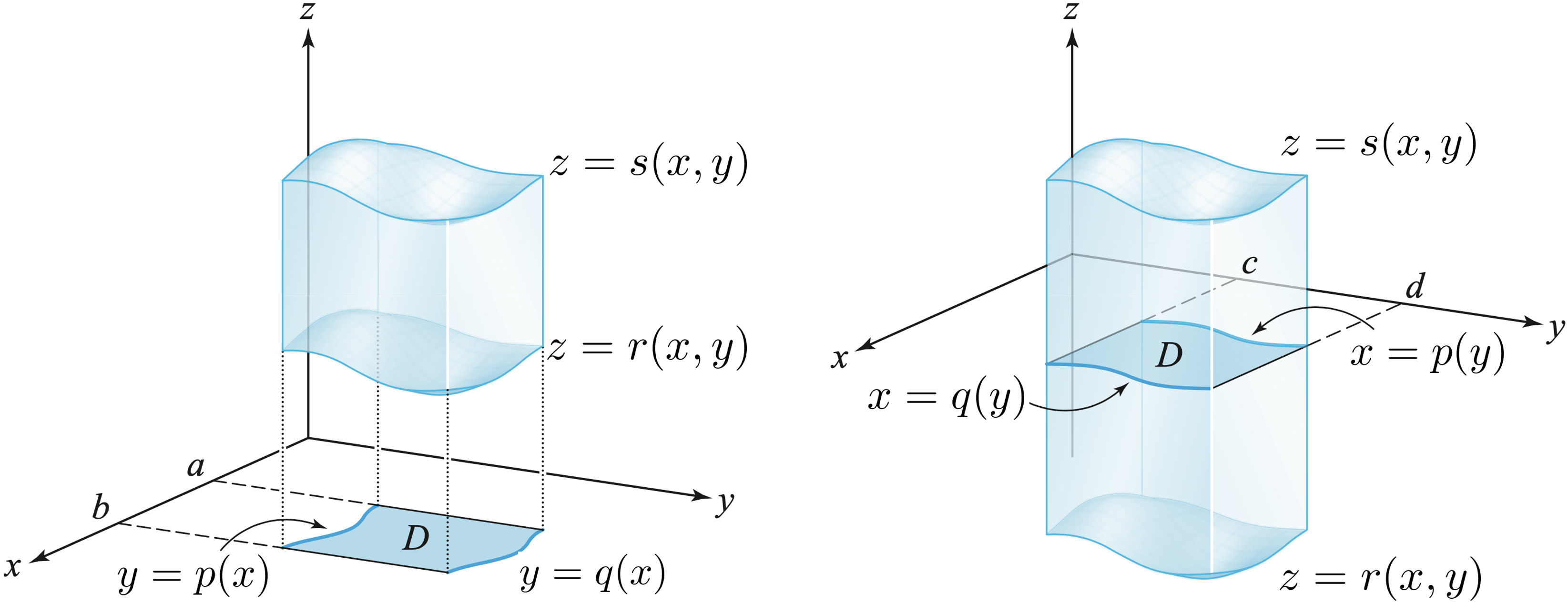

Projection of $R$ on the $xy$-plane: Regions Type 1 (Type I & Type II)

Source: Sterwart's Calculus 8th ed.


30.1 Find the mass of a rectangular block

with dimensions $0\leq x \leq L,$ $0\leq y \leq W$ and $0\leq z\leq H$
if the density is $\rho = \rho_0 + \alpha xyz.$








30.1 Find the mass of a rectangular block

with dimensions $0\leq x \leq L,$ $0\leq y \leq W$ and $0\leq z\leq H$
if the density is $\rho = \rho_0 + \alpha xyz.$

Consider a solid object that occupies a region $R$. Then the density function of this solid is \[ \rho (x,y,z) = \lim_{\Delta V \to 0} \frac{\Delta m}{\Delta V} \] in units of mass per unit volume, at any given point $(x, y, z)$. Then its mass is

\[ m = \iiint_R \rho(x,y,z)~dV. \]


30.1 Find the mass of a rectangular block

with dimensions $0\leq x \leq L,$ $0\leq y \leq W$ and $0\leq z\leq H$
if the density is $\rho = \rho_0 + \alpha xyz.$

Consider a solid object that occupies a region $R$. Then the density function of this solid is \[ \rho (x,y,z) = \lim_{\Delta V \to 0} \frac{\Delta m}{\Delta V} \] in units of mass per unit volume, at any given point $(x, y, z)$. Then its mass is

\[ m = \iiint_R \rho(x,y,z)~dV. \]

In this case our region is $$ R = \left\{ (x,y,z) ~|~ 0\leq x \leq L, 0\leq y \leq W, 0\leq z\leq H \right\}. $$



30.1 Find the mass of a rectangular block (cont.)

$m$ $\displaystyle =\iiint_R \rho(x,y,z) ~dV$ $\displaystyle =\iiint_R \left( ~\rho_0 + \alpha xyz~\right) dV$
$\displaystyle =\int_{z=0}^{z=H} \int_{y=0}^{y=W} \int_{x=0}^{x=L}\left( ~\rho_0 + \alpha xyz~\right)dx~dy~dz$
$\displaystyle =\int_{z=0}^{z=H} \int_{y=0}^{y=W} \left( ~\rho_0x + \alpha \frac{x^2}{2}yz~\right)\Bigg|_{x=0}^{x=L} dy~dz$
$\displaystyle =\int_{z=0}^{z=H} \int_{y=0}^{y=W} \left( ~\rho_0L + \alpha \frac{L^2}{2}yz~\right) dy~dz$


30.1 Find the mass of a rectangular block (cont.)

$m$ $\displaystyle =\int_{z=0}^{z=H} \int_{y=0}^{y=W} \left( ~\rho_0L + \alpha \frac{L^2}{2}yz~\right) dy~dz$
$\displaystyle =\int_{z=0}^{z=H} \left( ~\rho_0Ly + \alpha \frac{L^2}{2}\frac{y^2}{2}z~\right)\Bigg|_{y=0}^{y=W} dz$
$\displaystyle =\int_{z=0}^{z=H} \left( ~\rho_0LW + \alpha \frac{L^2}{2}\frac{W^2}{2}z~\right) dz$
$\displaystyle = \left( ~\rho_0LWz + \alpha \frac{L^2}{2}\frac{W^2}{2}\frac{z^2}{2}~\right)\Bigg|_{z=0}^{z=H} $
$\displaystyle =\rho_0 LWH + \frac{\alpha}{8} L^2W^2H^2.$

30.2 Evaluate $\ds\iiint_R z~dV$ over the region $R$

bounded by the surfaces $x=0,\,y=0, \,z=0$

and $x+y+z=1.$





30.2 Evaluate $\iiint_R z~dV$ over the region $R$ bounded by

the surfaces $x=0,$ $y=0,$ $z=0$ and $x+y+z=1.$

There are different ways to compute the integral. First, let's integrate with respect to $z$. Then $0\leq z \leq 1-x-y.$ Thus \[ \iiint_R z~dV = \iint_{D_{xy}} \left[ \int_{z=0}^{z=1-x-y}z~dz\right]dA_{xy} \] where $D_{xy}$ is the projection of $R$ on the plane $xy.$

The region $R$ is bounded by $x=0,$ $y=0$ and the intersection of $z=0$ with $z=1-x-y,$ i.e., $0=1-x-y,$ or $x+y=1.$



30.2 Evaluate $\iiint_R z~dV$ over the region $R$ bounded by

the surfaces $x=0,$ $y=0,$ $z=0$ and $x+y+z=1.$



30.2 Evaluate $\iiint_R z~dV$ (cont.)

This region $D_{xy}$ is of both types (I and II). Consider $D_{xy}$ as a type I region. Then

$\displaystyle \iiint_R z~dV$ $\displaystyle = \iint_{D_{xy}} \left[ \int_{z=0}^{z=1-x-y}z~dz\right]dA_{xy}$
$\displaystyle = \int _{x=0}^{x=1} \int_{y=0}^{y=1-x} \left[ \int_{z=0}^{z=1-x-y}z~dz \right]dy~dx$
$\displaystyle = \int _{x=0}^{x=1} \int_{y=0}^{y=1-x} \left[ \frac{z^2}{2}\Bigg|_{z=0}^{z=1-x-y} \right]dy~dx$


30.2 Evaluate $\iiint_R z~dV$ (cont.)

This region $D_{xy}$ is of both types (I and II). Consider $D_{xy}$ as a type I region. Then

$\displaystyle \iiint_R z~dV$ $\displaystyle = \int _{x=0}^{x=1} \int_{y=0}^{y=1-x} \left[ \frac{z^2}{2}\Bigg|_{z=0}^{z=1-x-y} \right]dy~dx$
$\displaystyle = \int _{x=0}^{x=1} \int_{y=0}^{y=1-x} \frac{(1-x-y)^2}{2} dy~dx$
$\displaystyle = \int _{x=0}^{x=1} \left[ -\frac{1}{6}\left( 1-y-x \right)^3 \Bigg|_{y=0}^{y=1-x} \right]dx$


30.2 Evaluate $\iiint_R z~dV$ (cont.)

This region $D_{xy}$ is of both types (I and II). Consider $D_{xy}$ as a type I region. Then

$\displaystyle \iiint_R z~dV$ $\displaystyle = \int _{x=0}^{x=1} \left[ -\frac{1}{6}\left( 1-y-x \right)^3 \Bigg|_{y=0}^{y=1-x} \right]dx$
$\displaystyle = \int _{x=0}^{x=1} \frac{1}{6}\left(1-x \right)^3dx$
$\displaystyle = -\frac{1}{24}\left(1-x\right)^4 \Bigg|_{x=0}^{x=1} $ $\displaystyle = \frac{1}{24}.$


30.3 Changing the order of integration

Express $\,\ds\int_{0}^{1}\int_{\sqrt{x}}^{1}\int_{0}^{1-y} f(x,y,z)~dz~dy~dx\,$ in the orders $\,dz~dx~dy\,$ and $\,dy~dz~dx.$


30.3 Changing the order of integration (cont.)

1. Express $\,\int_{0}^{1}\int_{\sqrt{x}}^{1}\int_{0}^{1-y} f(x,y,z)~dz~dy~dx\,$ in the order $\,dz$ $dx~dy.$

$\displaystyle \int_{x=0}^{x=1}\int_{y=\sqrt{x}}^{y=1}\left[ \int_{z=0}^{z=1-y} f ~dz \right]dy~dx$

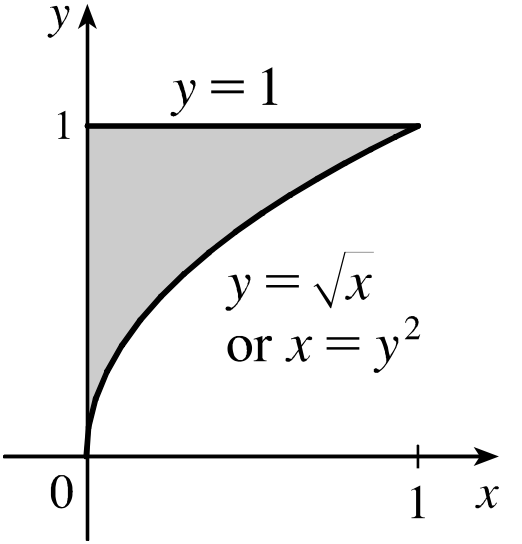

$ \qquad \displaystyle = \iint_{D}\left[ \int_{z=0}^{z=1-y} f ~dz \right]dy~dx $ ($D=$ projection of the region on the plane $xy$)

$ \qquad\displaystyle = \iint_{D}\left[ \int_{z=0}^{z=1-y} f ~dz \right]$ $dx~dy$

$ \qquad\displaystyle = \int_{y=0}^{y=1}\int_{x=0}^{x=y^2}$ $\displaystyle \left[ \int_{z=0}^{z=1-y} f ~dz \right]$ $dx~dy$

The original integral was of type I. But when we change the order $dy~dx$ to $dx~dy,$ we have now a type II integral.


30.3 Changing the order of integration (cont.)

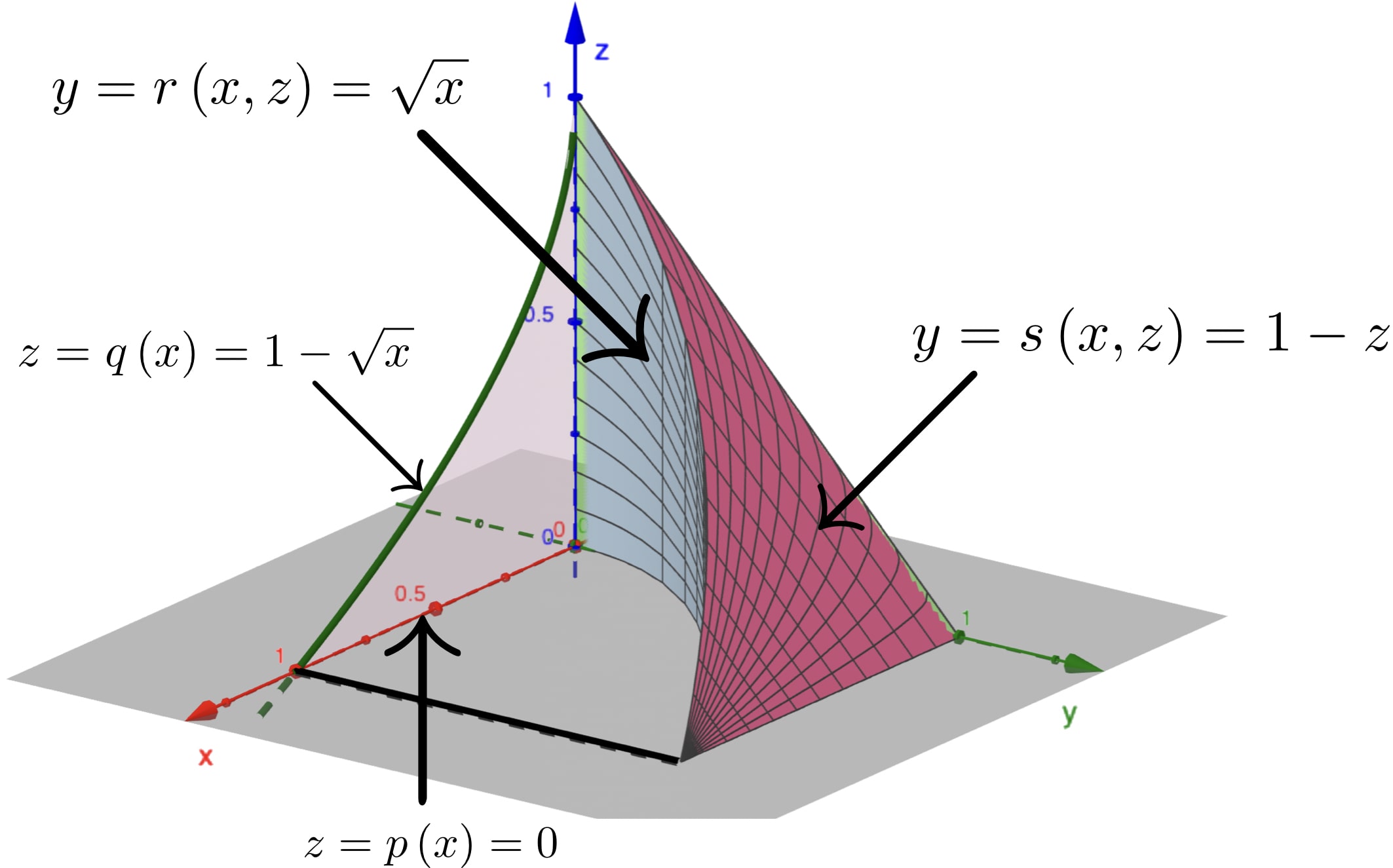

2. Express $\,\int_{0}^{1}\int_{\sqrt{x}}^{1}\int_{0}^{1-y} f(x,y,z)~dz~dy~dx\,$ in the order $dy~dz$ $dx$

$\displaystyle \int_{x=0}^{x=1}\int_{y=\sqrt{x}}^{y=1}\left[ \int_{z=0}^{z=1-y} f ~dz \right]dy~dx$

$\qquad \qquad \qquad \displaystyle = \int_{x=0}^{x=1}\left[ \int_{y=\sqrt{x}}^{y=1} \int_{z=0}^{z=1-y} f ~dz~ dy\right]dx $

$\qquad \qquad \qquad \displaystyle = \int_{x=0}^{x=1}\bigg[ \bigg.$ $\displaystyle\int_{z=0}^{z=1-\sqrt{x}} \int_{y=\sqrt{x}}^{y=1-z}$ $\displaystyle \,f$ $dy~ dz$ $\bigg.\bigg]dx $

$\qquad \qquad \qquad \displaystyle = \int_{x=0}^{x=1} \int_{z=0}^{z=1-\sqrt{x}} \left[ \int_{y=\sqrt{x}}^{y=1-z} f~dy \right] dz~dx $

$\qquad \qquad \qquad \displaystyle = \iint_D \left[ \int_{y=\sqrt{x}}^{y=1-z} f~dy \right] dA$

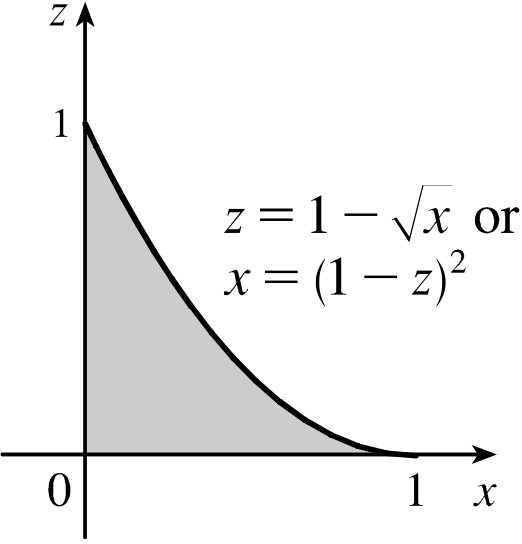

Here $D$ is the projection of the region onto the plane $xz.$


30.3 Changing the order of integration (cont.)

2. Express $\,\int_{0}^{1}\int_{\sqrt{x}}^{1}\int_{0}^{1-y} f(x,y,z)~dz~dy~dx\,$ in the order $\,dy~dz$ $dx$

\[ \int_{x=0}^{x=1}\int_{y=\sqrt{x}}^{y=1}\left[ \int_{z=0}^{z=1-y} f ~dz \right]dy~dx = \int_{x=0}^{x=1} \int_{z=0}^{z=1-\sqrt{x}} \left[ \int_{y=\sqrt{x}}^{y=1-z} f~dy \right] dz~dx \]

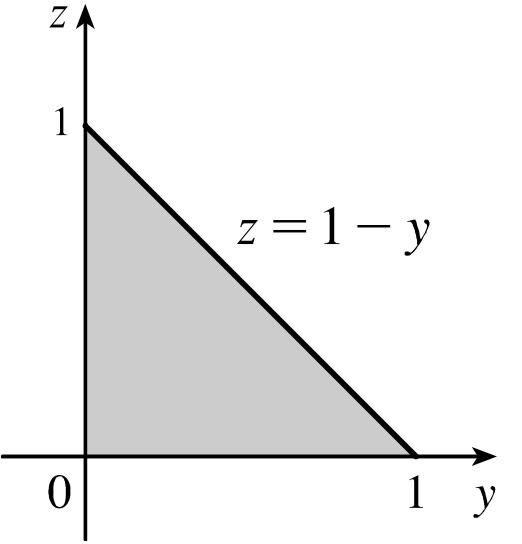

30.3 Changing the order of integration: All cases
$\displaystyle \int_0^1$ $\displaystyle \int_{\sqrt{x}}^{1}$ $\displaystyle \int_{0}^{1-y} $ $f$ $ dz$ $dy$ $dx$ $ \,= $ $\displaystyle \int_0^1 $ $\displaystyle \int_{0}^{y^2} $ $\displaystyle \int_{0}^{1-y}$ $f$ $ dz$ $dx$ $dy$
$\displaystyle \int_0^1$ $\displaystyle \int_{0}^{1-z}$ $\displaystyle \int_{0}^{y^2}$ $f$ $dx$ $dy$ $dz$ $ \,= $ $\displaystyle \int_0^1$ $\displaystyle\int_{0}^{1-y}$ $\displaystyle\int_{0}^{y^2}$ $f$ $ dx$ $dz$ $dy$
$\displaystyle \int_0^1$ $\displaystyle \int_{0}^{1-\sqrt{x}}$ $\displaystyle \int_{\sqrt{x}}^{1-z}$ $f$ $ dy$ $dz$ $dx$ $ \,= $ $\displaystyle \int_0^1 $ $\displaystyle \int_{0}^{(1-z)^2}$ $\displaystyle \int_{\sqrt{x}}^{1-z}$ $f$ $ dy$ $dx$ $dz$

30.3 Changing the order of integration: All cases
$\displaystyle \int_0^1$ $\displaystyle \int_{\sqrt{x}}^{1}$ $\displaystyle \int_{0}^{1-y} $ $f$ $dz$ $dy$ $dx$ $ \,= $ $\displaystyle \int_0^1$ $\displaystyle \int_{0}^{y^2}$ $\displaystyle \int_{0}^{1-y}$ $f$ $ dz$ $dx$ $dy$
$\displaystyle \int_0^1$ $\displaystyle \int_{0}^{1-z}$ $\displaystyle \int_{0}^{y^2}$ $f$ $ dx$ $dy$ $dz$ $ \,= $ $\displaystyle \int_0^1$ $\displaystyle\int_{0}^{1-y}$ $\displaystyle\int_{0}^{y^2} $ $f$ $ dx$ $dz$ $dy$
$\displaystyle \int_0^1$ $\displaystyle \int_{0}^{1-\sqrt{x}}$ $\displaystyle \int_{\sqrt{x}}^{1-z}$ $f$ $ dy$ $dz$ $dx$ $ \,= $ $\displaystyle \int_0^1 $ $\displaystyle \int_{0}^{(1-z)^2}$ $\displaystyle \int_{\sqrt{x}}^{1-z}$ $f$ $ dy$ $dx$ $dz$
